Air Hydraulic Pump
Foot Operated, Double Action
Max. Pressure 10000psi (700bar)
Product Details
Features
1. Wire/wireless remote controlling pump, which can be suitable for different working situations.
2. The pump is smart and portable with small size and light package, which is widely used for single-acting cylinders.
3. High quality seals and reasonable structure supply a strong force & excellent pressure-holding performance.
4. Every part of the pump is processed fine and durable.
5. With easy-economical repair unit, the pump can be used for long time with these recycle parts.
Specifications Table
| WPA-R SERIES SPECIFICATIONS (METRIC) | ||||||||||||||||||
| Model | Reservoir Type | Reservoir | Remote Type | Remote Wire Length | Air Supply Required | Flow Rate | oil port | weight | ||||||||||
| capacity | usable | @0 bar | @700 bar | |||||||||||||||
| L | L | m | bar | L/min | L/min | kg | ||||||||||||

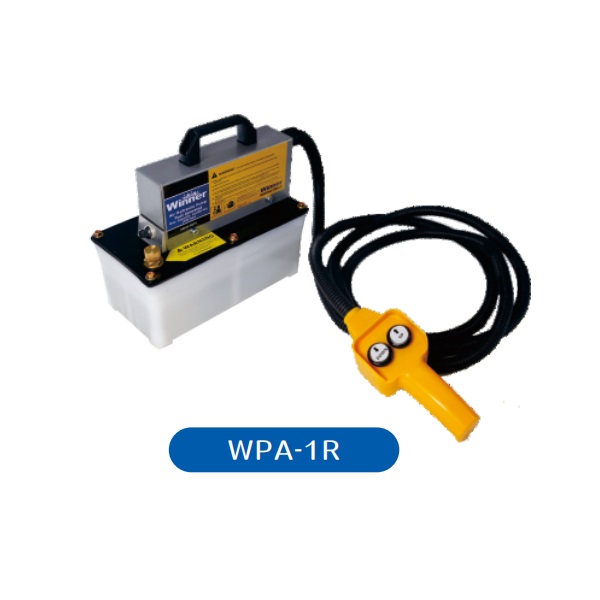

| WPA-1R | Polyethylene reservoir | 1.7 | 1.6 | wire | 2.5 | 3-8 | 1.22 | 0.095 | 3/8 NPT | 6.6 | ||||||||

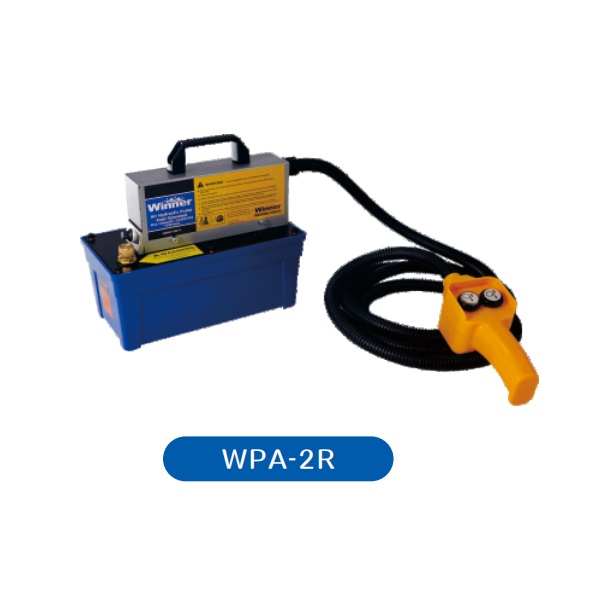

| WPA-2R | Aluminum reservoir | 1.7 | 1.6 | wire | 2.5 | 3-8 | 1.22 | 0.095 | 3/8 NPT | 7.6 | ||||||||

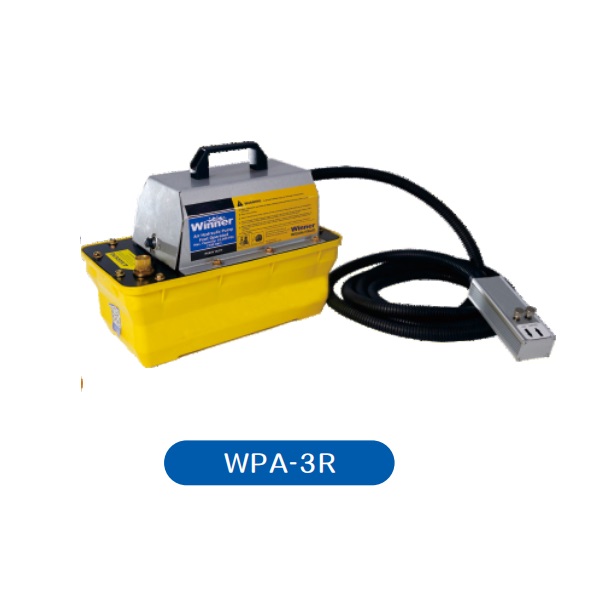

| WPA-3R | Polyethylene reservoir | 2.3 | 2.1 | wire | 2.5 | 3-8 | 1.22 | 0.095 | 3/8 NPT | 7.4 | ||||||||
| WPA-4R | Steel reservoir | 3.8 | 3.5 | wire | 2.5 | 3-8 | 1.22 | 0.095 | 3/8 NPT | 10.6 | ||||||||
| WPA-5R | Steel reservoir | 5 | 4.6 | wire | 2.5 | 3-8 | 1.22 | 0.095 | 3/8 NPT | 12.6 | ||||||||

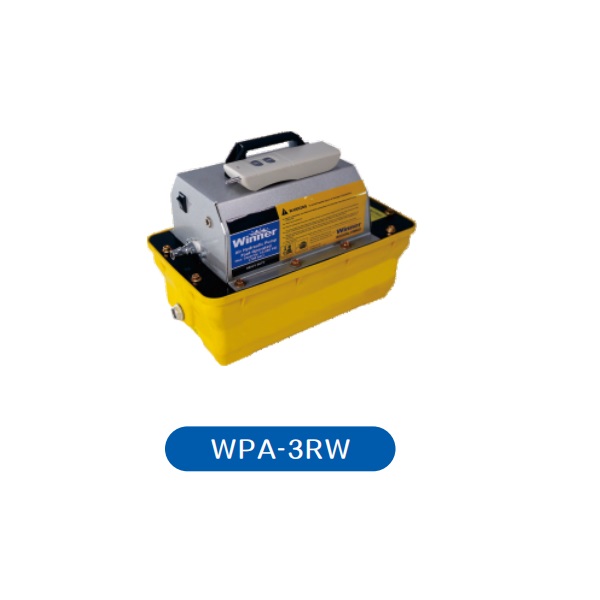

| WPA-3RW | Polyethylene reservoir | 2.3 | 2.1 | wireless | / | 3-8 | 1.22 | 0.095 | 3/8 NPT | 7.5 | ||||||||
| WPA-4RW | Steel reservoir | 3.8 | 3.5 | wireless | / | 3-8 | 1.22 | 0.095 | 3/8 NPT | 10.7 | ||||||||
| WPA-5RW | Steel reservoir | 5 | 4.6 | wireless | / | 3-8 | 1.22 | 0.095 | 3/8 NPT | 12.7 | ||||||||
