Air Hydraulic Pump
Foot Operated, Single Action
Max. Pressure 10000psi (700bar)
Product Details
Features
1. The pump is smart and portable with small size and light package, which is widely used for single action cylinders.
2. High quality seals and reasonable structure supply a strong force & excellent pressure-holding performance.
3. Every part of the pump is processed fine and durable.
4. With easy-economical repair unit, the pump can be used for long time with these recycle parts.
Specifications Table
| WPA SERIES SPECIFICATIONS (METRIC) | ||||||||||||||||
| Model | Reservoir Type | Reservoir | Air Supply Required | Flow Rate | oil port | weight | ||||||||||
| capacity | usable | @0 bar | @700 bar | |||||||||||||
| L | L | bar | L/min | L/min | kg | |||||||||||

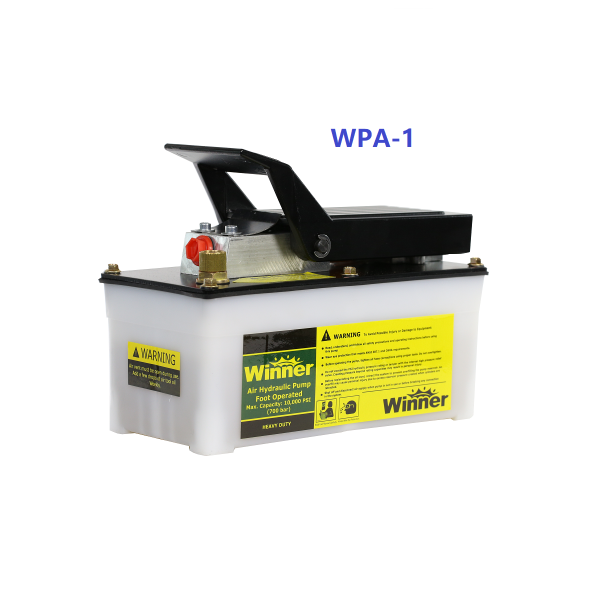

| WPA-1 | Polyethylene reservoir | 1.7 | 1.6 | 3-8 | 1.22 | 0.095 | 3/8 NPT | 6 | ||||||||

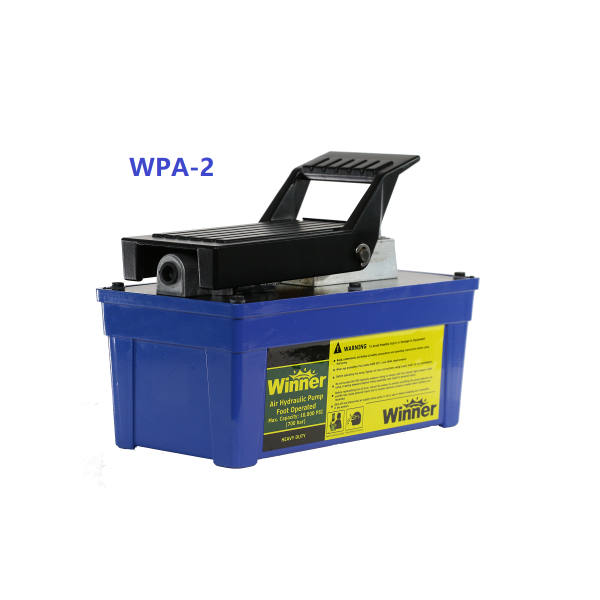

| WPA-2 | Aluminum reservoir | 1.7 | 1.6 | 3-8 | 1.22 | 0.095 | 3/8 NPT | 7 | ||||||||

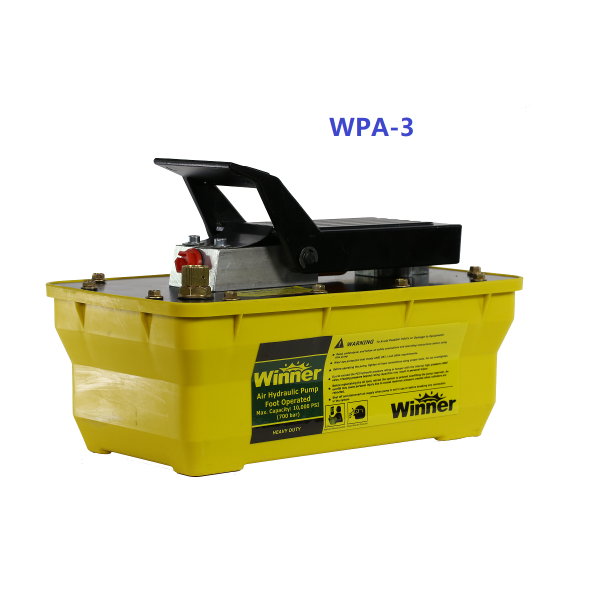

| WPA-3 | Polyethylene reservoir | 2.3 | 2.1 | 3-8 | 1.22 | 0.095 | 3/8 NPT | 6.8 | ||||||||

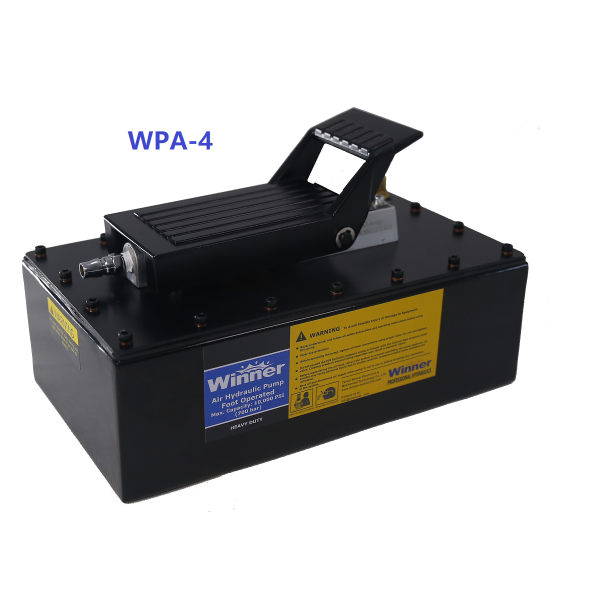

| WPA-4 | Steel reservoir | 3.8 | 3.5 | 3-8 | 1.22 | 0.095 | 3/8 NPT | 10 | ||||||||
| WPA-5 | Steel reservoir | 5 | 4.6 | 3-8 | 1.22 | 0.095 | 3/8 NPT | 12 | ||||||||
