The Main Equipment Includes:

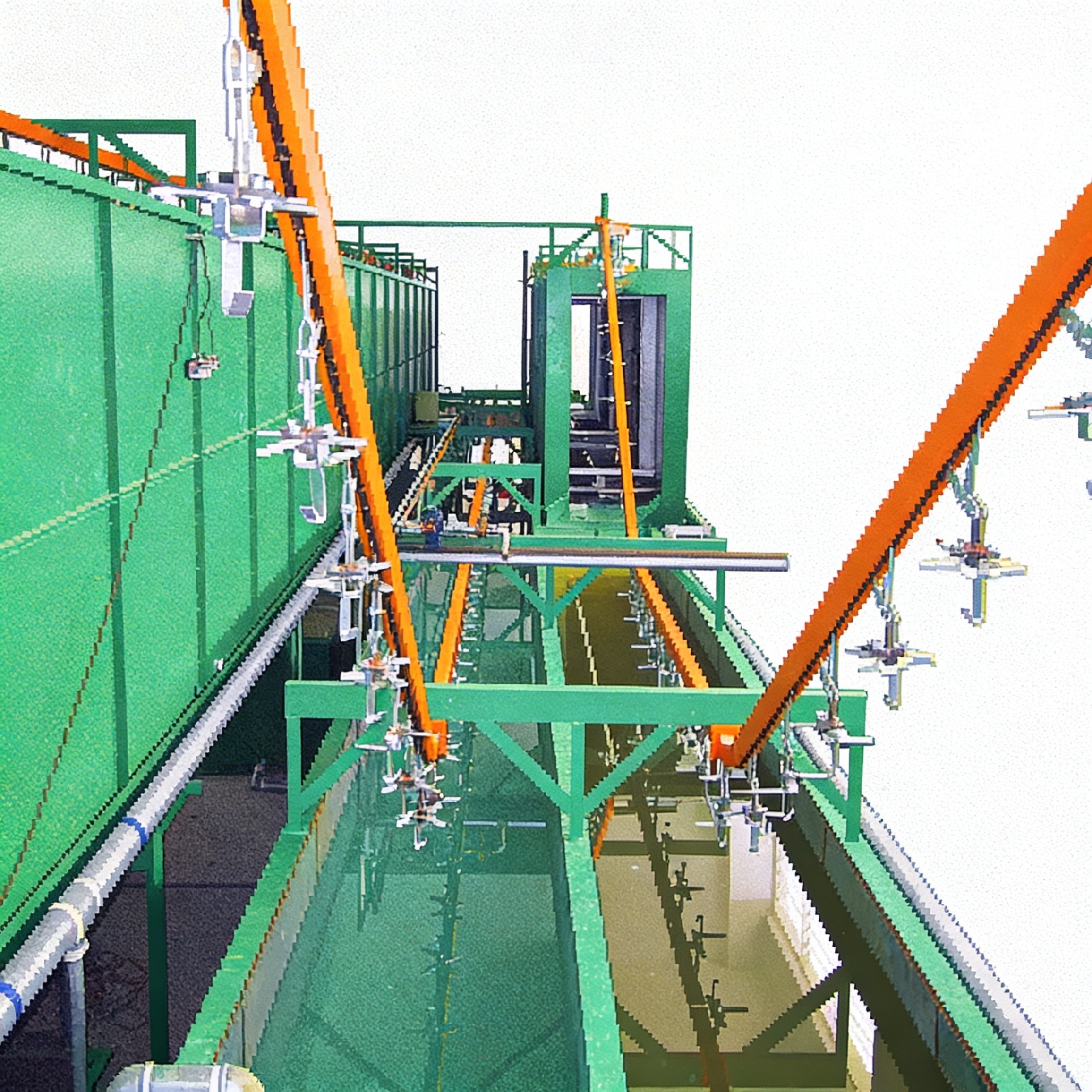

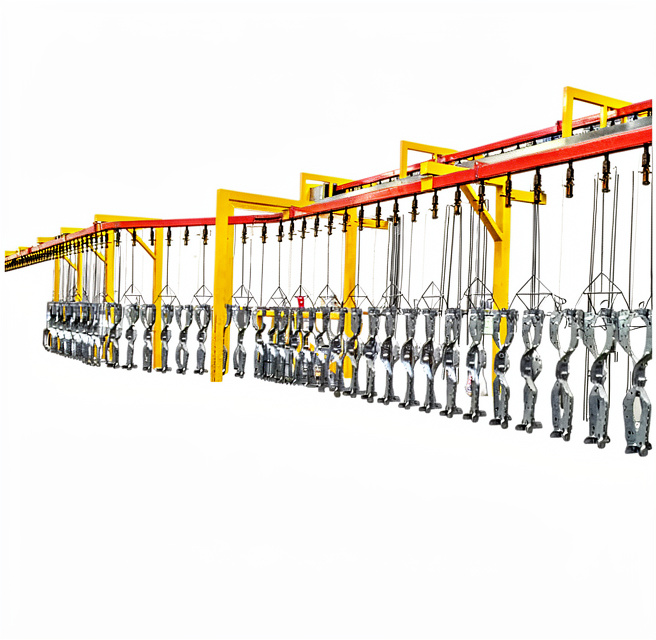

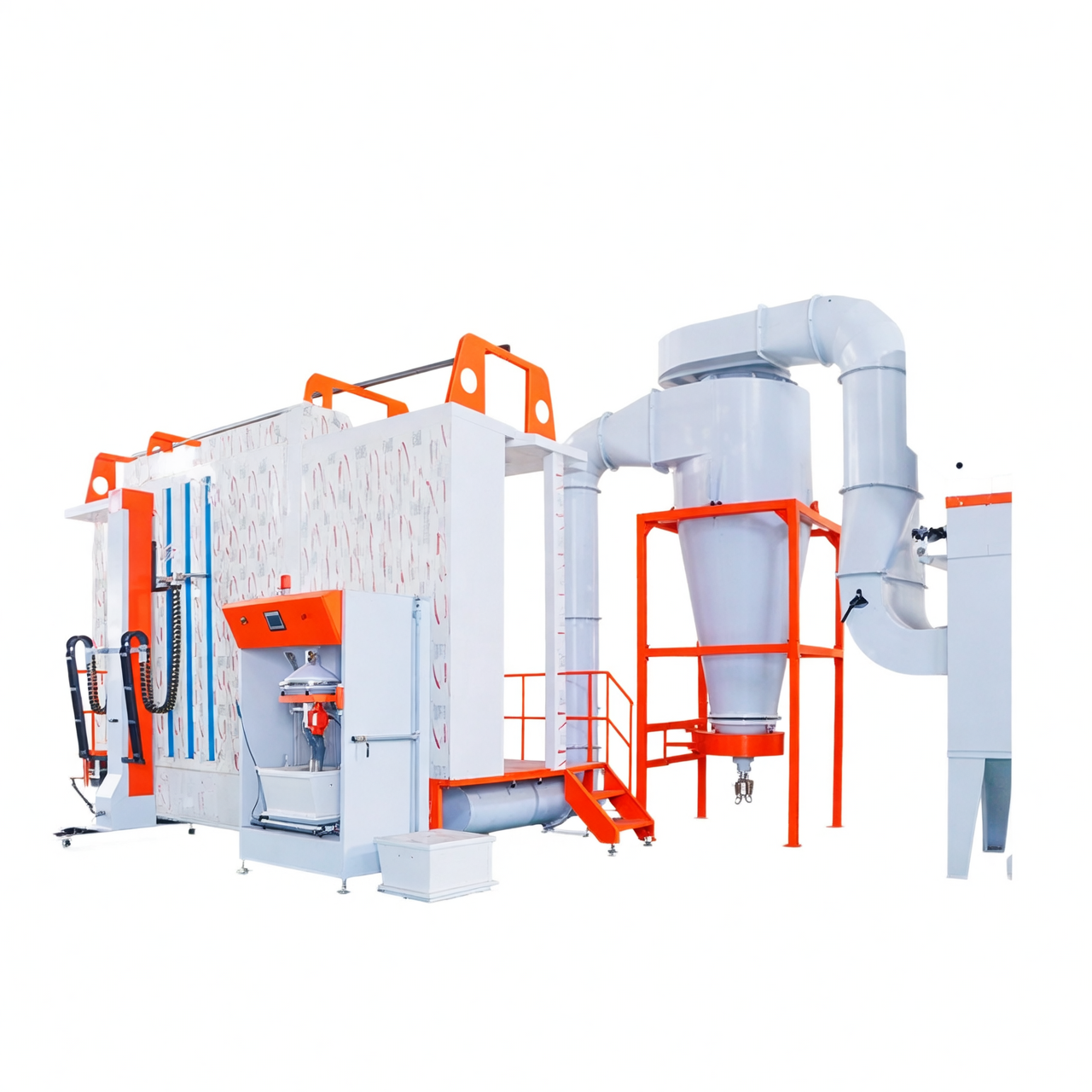

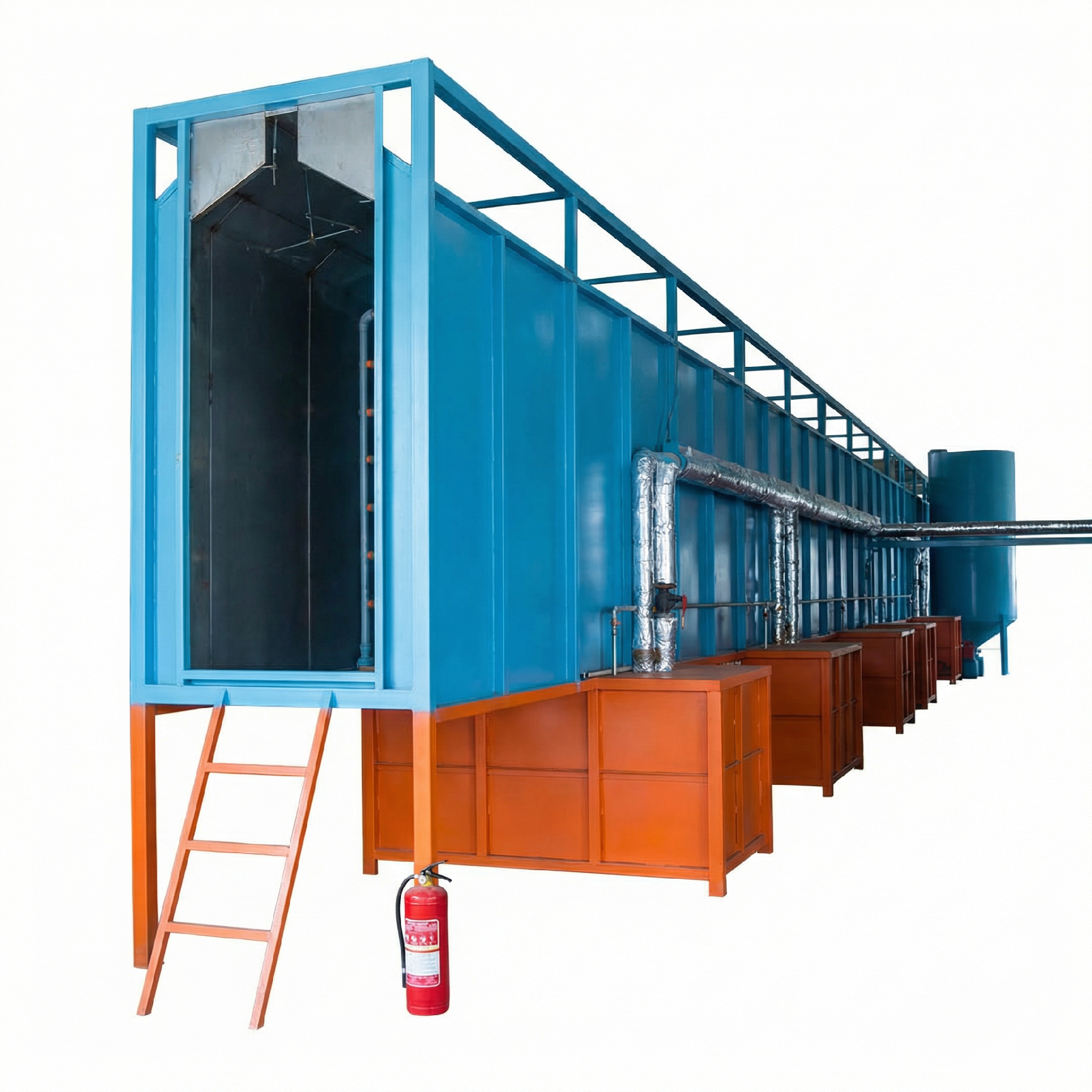

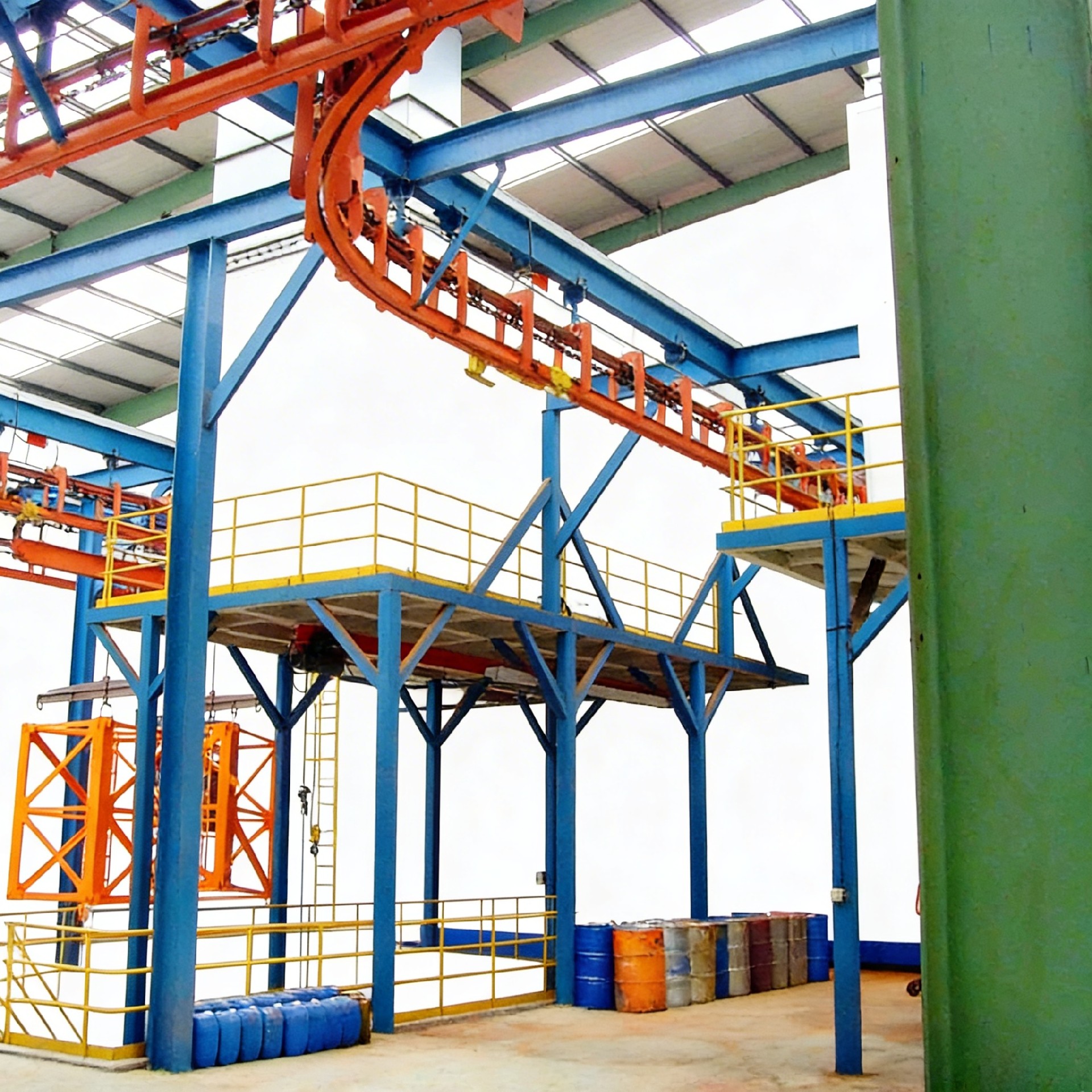

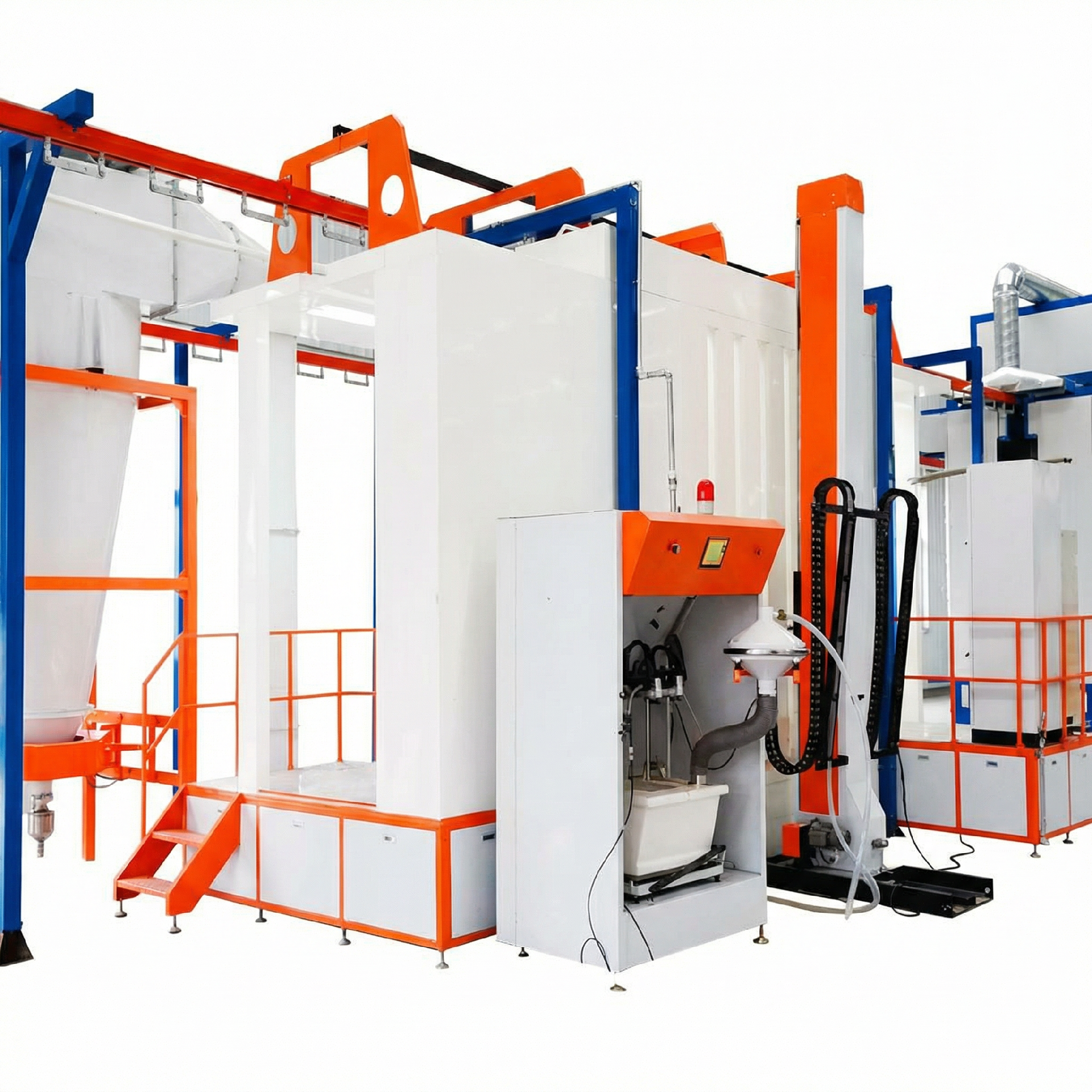

Pre-treatment system, powder coating recovery equipment, drying tunnel, heating system, overhead conveyor chain, and electrical control system.

Project Performance:

The production coating adopts advanced domestic and international coating technologies. Upon completion, it will demonstrate our factory's high level of design, manufacturing, installation, debugging, and comprehensive after-sales service. The production line will be rationally configured, reliable, energy-efficient, and highly efficient, reducing labor intensity and improving the working environment. The final product coating quality will meet or exceed industry standards.

Basic Design Connditions' Example:

Workpiece Name: Metal Products

Effective Working Time: 22days/month, 8hours/day

Maximum Workpiece Size and Weight: Size: 3000*800*2000mm L*W*H, Weight: ≤150kg/piece(Max)

Hanging Spacing: 600mm; Center Distance: 300mm

Hanging Method: Double-point single-piece hanging

Line Speed: 2m/min(0.3-3m/min continuoulsy adjustable)

Drying Conditions: 180-200°C/20-30min

Powder Supply: 380V, 3phase, 50Hz

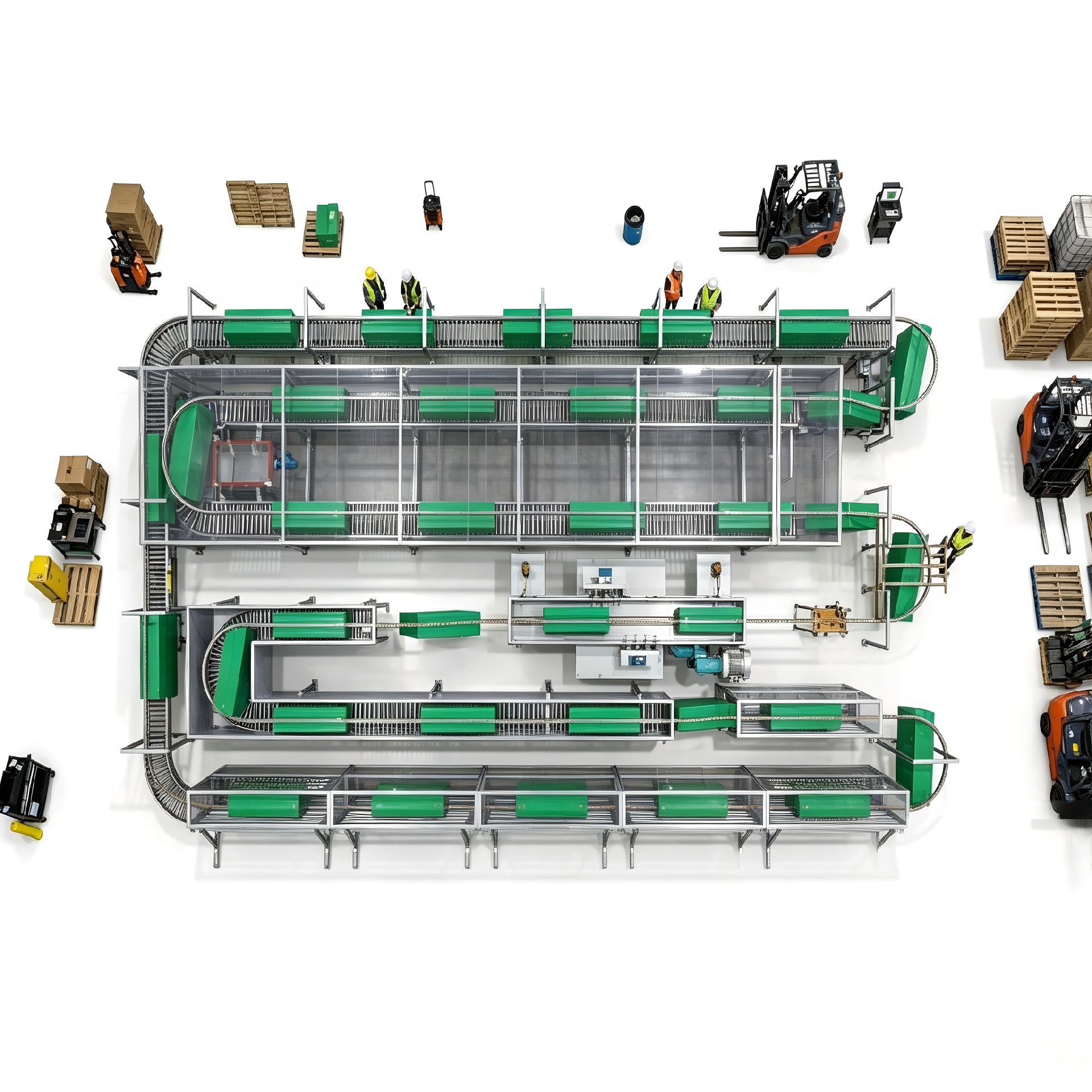

Factory Conditions: Refer to the layout diagram(mm)
